FR900K Horizontal Continuous Band Sealer
Efficient Horizontal Continuous Band Sealer for Streamlined Packaging Solutions - PACKMACHINE, Leading Sealing Machines Manufacturer in Bangalore
Our continuous horizontal band sealer is designed for packing and sealing dry goods, offering suitability for sealing and bag-making with various plastic and compound films. Featuring an electronic constant temperature mechanism and a step-less speed adjusting transmission system, this sealer is an ideal choice for assembly line applications. Simultaneously, it enables the printing of production dates, logos, and more on the film, with an updated control panel equipped with an advanced temperature meter and counting function.
Key Features:
-
EXCELLENT SEALING PERFORMANCE: Sealing Width: 6-15 mm. Film Thickness: 0.02-0.08 mm. Sealing Speed: 0-16 m/min. The band sealer offers unlimited sealing length, fitting different seal assembly lines with stable and efficient performance, making it suitable for sealing dry goods.
-
CONVENIENT PRINTING: This auto sealer accommodates various length sizes and provides different sealing pattern effects. With an embossing wheel and a printing wheel, it can simultaneously print dates, remarks, times, logos, and more, with adjustable pressure.
-
DURABLE MATERIAL: The continuous sealer boasts an all-metal construction with durable electrostatic paint treatment, ensuring solidity and wear resistance. The heating block and cooling block are made of pure copper, and premium iron gears contribute to long-term durability. Two handles enhance portability.
-
CONTROL PANEL & COUNTING: The easy-to-operate control panel features a digital display temperature control meter for simple and convenient operation. The temperature range is 0 - 400 °C, and the sealer includes an automatic counting function with a photoelectricity counter.
-
WIDE APPLICATION: This seal machine is suitable for sealing plastic bags, aluminum foil bags, and compound bags in various industries, including medicine, agricultural chemicals, and food processing.
Features Of FR900K Horizontal Continuous Band Sealer

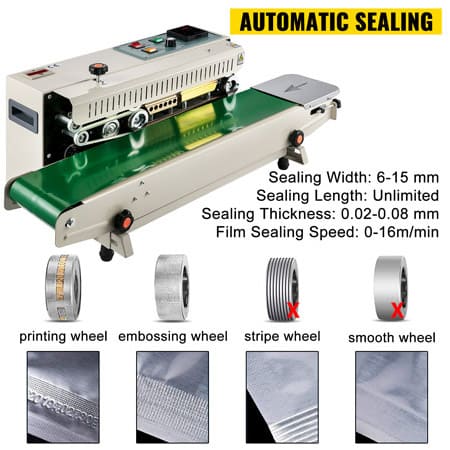

Automatic Sealing
The automatic bag sealer is equipped with an embossing wheel and a printing wheel. You can replace the type with what you need and print the production date, time, logo, etc., in the film. It comes with a box of letters and numbers.

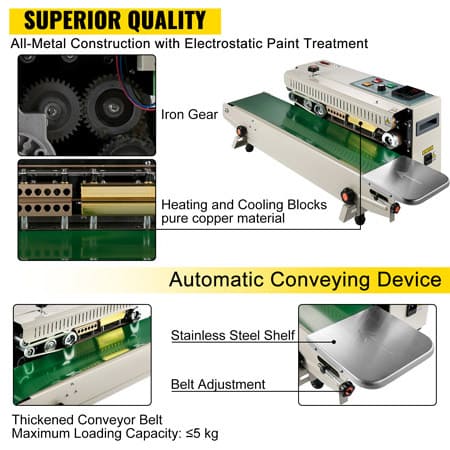

Solid Construction
The heating and cooling blocks are made of pure copper, and the gears are made of solid iron. The automatic bag sealer adopts the roller conveyor, combined with a thickened belt and a stainless steel shelf. The belt position is adjustable.
Updated Control Panel
The bag sealing machine features an updated control panel. A digital display temperature control meter is clearer and easier to operate than a dial temperature control meter. Besides, it has the counting function with a photoelectricity counter.

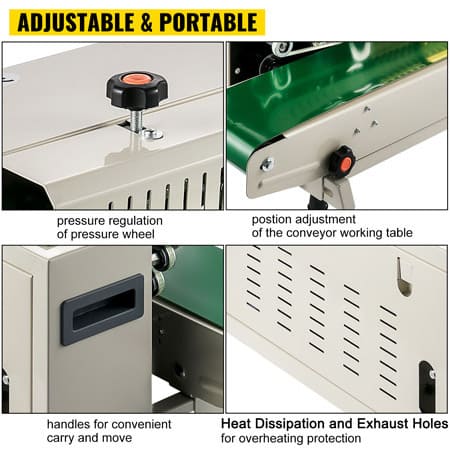

Adjustable & Portable
The pressure control button is used to adjust the printing wheel's pressure to meet the different thickness of the bag. The front and behind of the conveying table also can be adjustable. It is designed with handles for portability and exhaust holes for heat dissipation.

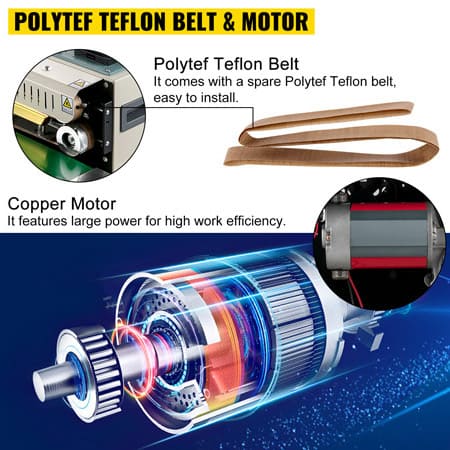

Polytef Teflon Belt & Motor
The continuous bag sealer machine is solid and robust with metal construction. The enlarged pure copper motor features strong power, low noise, and stable performance. Besides, the plastic bag sealing machine comes with an extra Polytef Teflon belt, high temperature-resistant.
Wide Application

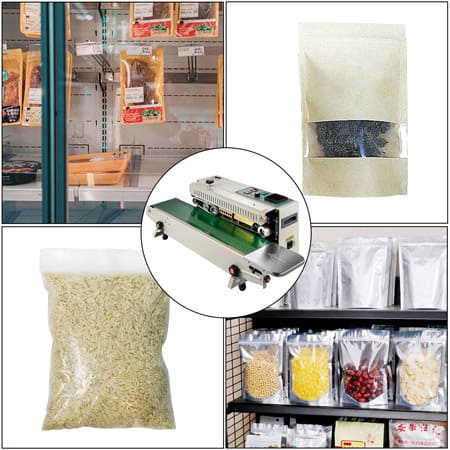

The design of this automatic sealer makes it perfect for the production line. It is suitable for food, medicine, daily necessities, chemicals, electronic units, seeds packaging, etc. The packaging sealing machine suits many film materials, such as PP, PE, PV, OPP, PS.
Specifications of FR900K Horizontal Continuous Band Sealer
| Model | FR900K |
| Pattern | Horizontal |
| Voltage | 220V/50 Hz |
| Heating power | 700W |
| Seal width | 6-15 mm/0.24-0.59 inch |
| Sealing speed | 0-16 m/min |
| Sealing thickness | 0.02-0.08 mm/0.0008-0.03 inch |
| Temperature control range | 0 - 400 °C/32 ℉ - 752 ℉ |
| Conveyor Load | Max. 5.0 kg |
| Number of printing | ≤39pcs |
| Motor Power | 80W |
| Function | Sealing, Printing, Counting |
Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.
