FR770 Vertical Continuous Band Sealer

Versatile Vertical Continuous Band Sealer for Optimal Packaging Solutions - PACKMACHINE, Leading Sealing Machines Manufacturer in Bangalore

Vertical Continuous Band Sealer in Bangalore

Our FR-770 Continuous Vertical Band Sealer is designed for the efficient packing and sealing of liquid goods, making it ideal for various plastic and compound films used in bag-making. The machine incorporates an electronic constant temperature mechanism and a stepless speed adjusting transmission system, making it well-suited for assembly line applications. Simultaneously, it allows for the printing of production dates, logos, and other information on product packages. To accommodate different bag thicknesses, it is advisable to adjust the temperature and pressure values accordingly.

Key Features:

  • Excellent Performance: Sealing Width: 6-15 mm (0.24-0.59 inch); Film Thickness: 0.02-0.8 MM; Sealing Speed: 0-12 m/min. The continuous bag band sealing machine is versatile, fitting different seal assembly lines with an embossing wheel and equipped with a printing wheel.

  • Strong Copper Motor: The vertical bag sealer features a robust copper motor, providing substantial power and high sealing efficiency. The motor operates quietly while ensuring stable sealing performance.

  • Human-Friendly Design: Designed with user convenience in mind, the auto sealer includes an easy-to-operate control panel, height-adjustable buttons, and pressure-adjustment features to meet various demands. Additionally, the two handles enhance portability for user convenience.

  • Durable Construction: The continuous sealer boasts an all-metal construction with a durable electrostatic paint treatment. The heating block and cooling block are made of pure copper, ensuring solidity and resistance against wear.

  • Far-ranging Scenarios: Suitable for bags with a thickness of 0.02 mm-0.8 mm on both sides, this seal machine is perfect for sealing plastic bags, aluminum foil bags, and compound bags in industries such as medicine, agriculture, and food processing.

Features Of FR770 Vertical Continuous Band Sealer

Band Sealing Machine

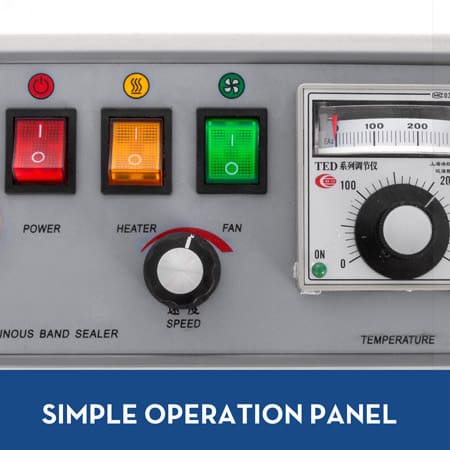

Simple Operation Panel

Include a power button to turn on/off the machine, a FAN switch and a HEATER switch. Speed button is for adjusting the sealing speed. Temperature can be monitored and adjusted.

Continuous Band Sealer

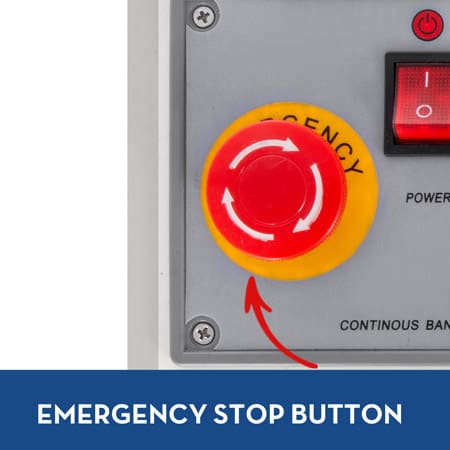

Emergency Stop Button

On the control panel, there is an emergency stop button. This button is designed for users to prevent the potential trouble quickly so as to decrease the loss and protect the machine.

Horizontal Band Sealer

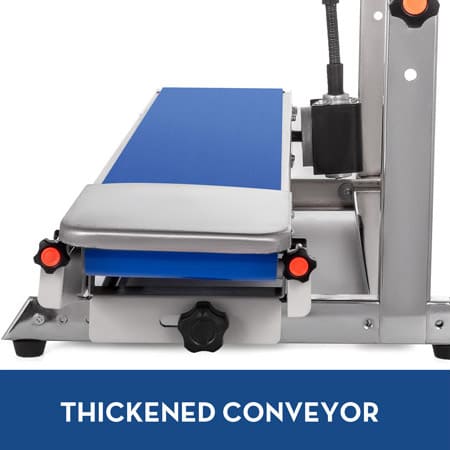

Thickened Conveyor

The sealing machine is equipped with a thickened conveyor. It is durable and anti-friction. Offer a great load capacity for the sealer and guarantee a long-term service life.

Continous Band Sealing Machine

Adjustable Height And Pressure

The up down and front behind of conveying table, and the height between sealing table and conveying table can be adjustable. Adjust pressure to meet different thickness of the bag.

Heavy Duty Horizontal Continuous Band Sealer

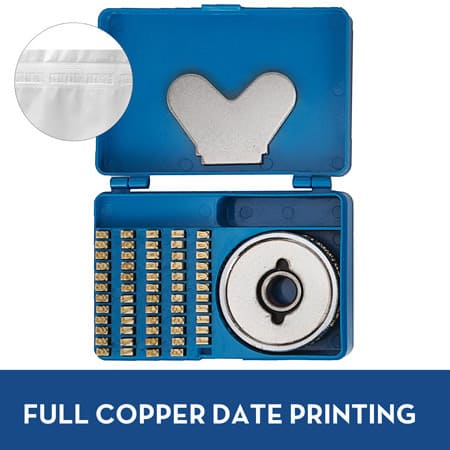

Full Copper Date Printing

Offer you a full copper print wheel with letters and numbers. You can print the production date, time etc. on the package. The machine is equipped with embossing wheel and type wheel, and you can replace the type.

Continuous Band Sealers

Wide Application

This automatic sealer is perfect for the production line. Suitable for food, medicine, daily necessities, chemicals, electronic units, seeds packaging, and suits many different film material, such as PP, PE, PV, OPP, PS.

Specifications of FR770 Vertical Continuous Band Sealer

Model FR770
Power 500W
Pattern Vertical
Voltage 220V/50 Hz
Seal width 6-10mm (5-12mm adjustable)
Sealing speed 0-16 m/min
Sealing thickness 0.02-0.80 mm
Temperature control range 0 - 400 °C/32 ℉ - 752 ℉
Conveyor Load Max. 5.0 kg
Number of printing ≤39pcs
Motor Power 80W
Function Sealing, Printing, Counting

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.
